Automated Chemical Dispensing for Hatchery Incubation Operations
Chemical dosing during egg incubation requires consistent delivery and careful handling. The HDX Hatchery Dosing System automates this process by controlling pump activation through a programmable timer, ensuring the correct amount of chemistry is dispensed at repeatable intervals.
​​
Using a peristaltic metering pump, the system provides dependable dosing performance while minimizing operator involvement. ​Operators configure dosing cycles using the 5-inch color touchscreen, allowing precise control of pump ON/OFF intervals to match established hatchery procedures.
HDX Hatchery Dosing System
CONTROL TIMER
HDX-CT
Controller with automated timer system. Set on/off times for pump activation to control up to 16 pumps at once.
​​
Features
-
Automated controller with color touchscreen UI
-
On, Off, and Pre-Delay timer settings for 24-hour dispense controls
-
Activation log reports
-
Movile app support
-
Accommodates up to 16 pumps
PBX PUMP
HDX-PBC-EG

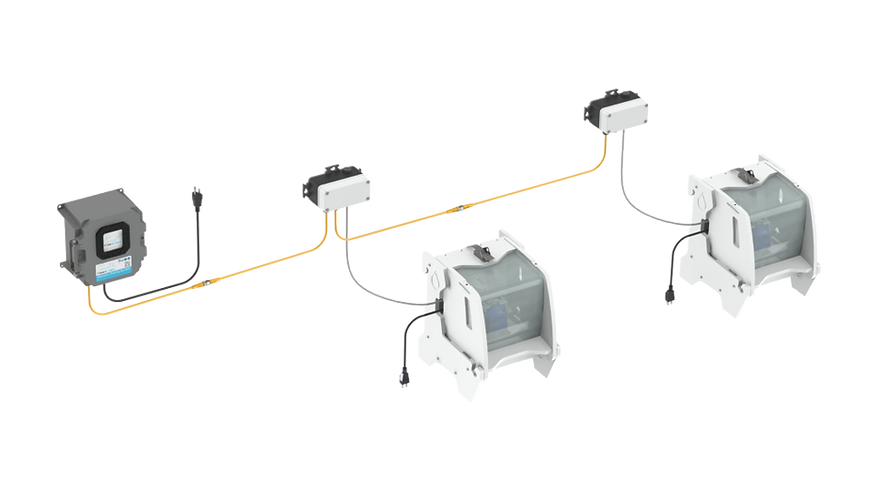

HDX PBX Pump connects to the controller via electrical junction box. Up to 16 pumps can be daisy chained to a single controller with the same timer schedule.
​
Features
-
PBX-25 pump box
-
Peristaltic pump (16GPD output) with SS mounting bracket
-
Electrical junction box for connecting to controller (includes M12 cables)
